扳手活动空间尺寸(JB/ZQ4005-1984)
来源:本站 时间:2024-11-27 浏览:12

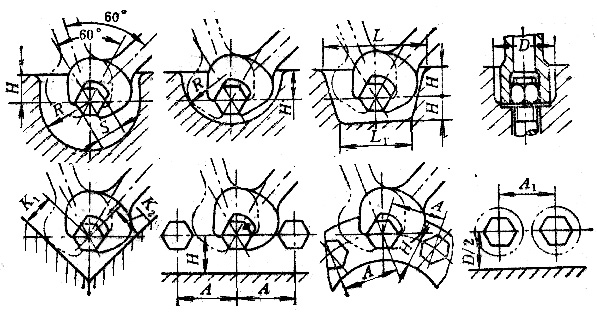

扳手活动空间尺寸：摘自JB/ZQ 4005-1984
| 螺纹规格d | S | A | A1 | A2 | E | E1 | M | L | L1 | R | D |
| 1.6 | 3.2 | 12 | 10 | 8 | 4 | 5 | 8 | 22 | 13 | 12 | 10 |
| 2 | 4 | 14 | 10 | 8 | 4 | 6 | 9 | 25 | 20 | 12 | 12 |
| 2.5 | 5 | 16 | 12 | 10 | 5 | 7 | 11 | 28 | 22 | 14 | 12 |
| 3 | 5.5 | 18 | 12 | 12 | 5 | 7 | 11 | 30 | 24 | 15 | 14 |
| 3.5 | (6) | 18 | 12 | 12 | 5 | 7 | 12 | 30 | 26 | 15 | 14 |
| 4 | 7 | 20 | 16 | 14 | 6 | 7 | 12 | 34 | 28 | 16 | 16 |
| 5 | 8 | 22 | 16 | 15 | 7 | 10 | 13 | 36 | 30 | 18 | 20 |
| 6 | 10 | 26 | 18 | 18 | 8 | 12 | 15 | 46 | 38 | 20 | 24 |
| 7 | 11 | 28 | 20 | 18 | 10 | 12 | 16 | 50 | 40 | 22 | 25 |
| 7 | (12) | 30 | 22 | 20 | 10 | 14 | 17 | 52 | 42 | 24 | 26 |
| 8 | 13 | 32 | 24 | 22 | 11 | 14 | 18 | 55 | 44 | 25 | 28 |
| 8 | (14) | 34 | 26 | 24 | 11 | 15 | 19 | 58 | 46 | 26 | 30 |
| 10 | 16 | 38 | 28 | 26 | 13 | 16 | 22 | 62 | 50 | 30 | 30 |
| 10 | (17) | 40 | 28 | 28 | 13 | 18 | 23 | 65 | 52 | 32 | 34 |
| 12 | 18 | 42 | - | 30 | 14 | 18 | 24 | 70 | 55 | 32 | - |
| 12 | (19) | 44 | 34 | 32 | 14 | 20 | 25 | 75 | 60 | 34 | 38 |
| 14 | 21 | 48 | 36 | 34 | 15 | 20 | 26 | 80 | 65 | 36 | 40 |
| 14 | (22) | 50 | 36 | 34 | 15 | 22 | 28 | 80 | 65 | 38 | 42 |
| 16 | 24 | 55 | 38 | 38 | 16 | 24 | 30 | 85 | 70 | 42 | 45 |
| 18 | 27 | 62 | 45 | 42 | 19 | 25 | 32 | 95 | 75 | 46 | 52 |
| 20 | 30 | 68 | 48 | 46 | 20 | 28 | 35 | 105 | 85 | 50 | 56 |
| 22 | (32) | 72 | 50 | 50 | 22 | 30 | 38 | 110 | 90 | 53 | 60 |
| 22 | 34 | 76 | 55 | 52 | 24 | 32 | 40 | 120 | 95 | 58 | 60 |
| 24 | 36 | 80 | 58 | 55 | 24 | 34 | 42 | 125 | 100 | 60 | 70 |
| 27 | 41 | 90 | 65 | 62 | 26 | 36 | 46 | 135 | 110 | 65 | 76 |
| 30 | 46 | 100 | 72 | 70 | 30 | 40 | 56 | 155 | 125 | 75 | 82 |
| 33 | 50 | 108 | 76 | 75 | 32 | 44 | 58 | 165 | 130 | 80 | 88 |
| 36 | 55 | 113 | 85 | 82 | 36 | 48 | 60 | 180 | 145 | 88 | 95 |
| 39 | 60 | 125 | 90 | 88 | 38 | 52 | 65 | 190 | 155 | 92 | 100 |
| 42 | 65 | 135 | 96 | 96 | 42 | 55 | 70 | 205 | 165 | 100 | 106 |
| 45 | 70 | 145 | 105 | 102 | 45 | 60 | 75 | 220 | 175 | 105 | 112 |
| 48 | 75 | 160 | 115 | 112 | 48 | 65 | 80 | 235 | 185 | 115 | 126 |
| 52 | 80 | 170 | 120 | 120 | 48 | 70 | 84 | 245 | 195 | 125 | 132 |
| 56 | 85 | 180 | 126 | - | 52 | - | 90 | 260 | 205 | 130 | 138 |
| 60 | 90 | 185 | 134 | - | 58 | - | 95 | 275 | 215 | 135 | 145 |
| 64 | 95 | 195 | 140 | - | 58 | - | 100 | 285 | 225 | 140 | 152 |
| 68 | 100 | 205 | 145 | - | 65 | - | 105 | 300 | 235 | 150 | 158 |
| 72 | 105 | 215 | 155 | - | 68 | - | 110 | 320 | 250 | 160 | 168 |
| 76 | 110 | 225 | - | - | 70 | - | 115 | 335 | 265 | 165 | - |
| 80 | 118 | 235 | 165 | - | 72 | - | 120 | 345 | 275 | 170 | 178 |
| 85 | 120 | 245 | 175 | - | 75 | - | 125 | 360 | 285 | 180 | 188 |
| 90 | 130 | 260 | 190 | - | 80 | - | 135 | 390 | 310 | 190 | 208 |
| 95 | 135 | 270 | - | - | 85 | - | 140 | 405 | 320 | 200 | - |
| 100 | 145 | 290 | 215 | - | 95 | - | 150 | 435 | 340 | 215 | 238 |
| 105 | 150 | 300 | - | - | 98 | - | 155 | 450 | 350 | 220 | - |
| 110 | 155 | 310 | - | - | 100 | - | 160 | 460 | 360 | 225 | - |
| 110 | (160) | 320 | 240 | - | 105 | - | 165 | 475 | 370 | 235 | 270 |
| 115 | 165 | 330 | - | - | 108 | - | 170 | 495 | 385 | 245 | - |
| 120 | 170 | 340 | - | - | 108 | - | 175 | 505 | 400 | 250 | - |
| 120 | (175) | 350 | 260 | - | 110 | - | 180 | 520 | 410 | 260 | 300 |
| 125 | 180 | 360 | - | - | 115 | - | 185 | 535 | 420 | 270 | - |
| 130 | 185 | 370 | - | - | 115 | - | 190 | 545 | 430 | 275 | - |
| 140 | 200 | 385 | - | - | 120 | - | 205 | 585 | 465 | 295 | - |
| 150 | 210 | 420 | 310 | - | 130 | - | 215 | 625 | 495 | 310 | 350 |
| 170 | (240) | 475 | 345 | - | 150 | - | 245 | 705 | 555 | 350 | 380 |
